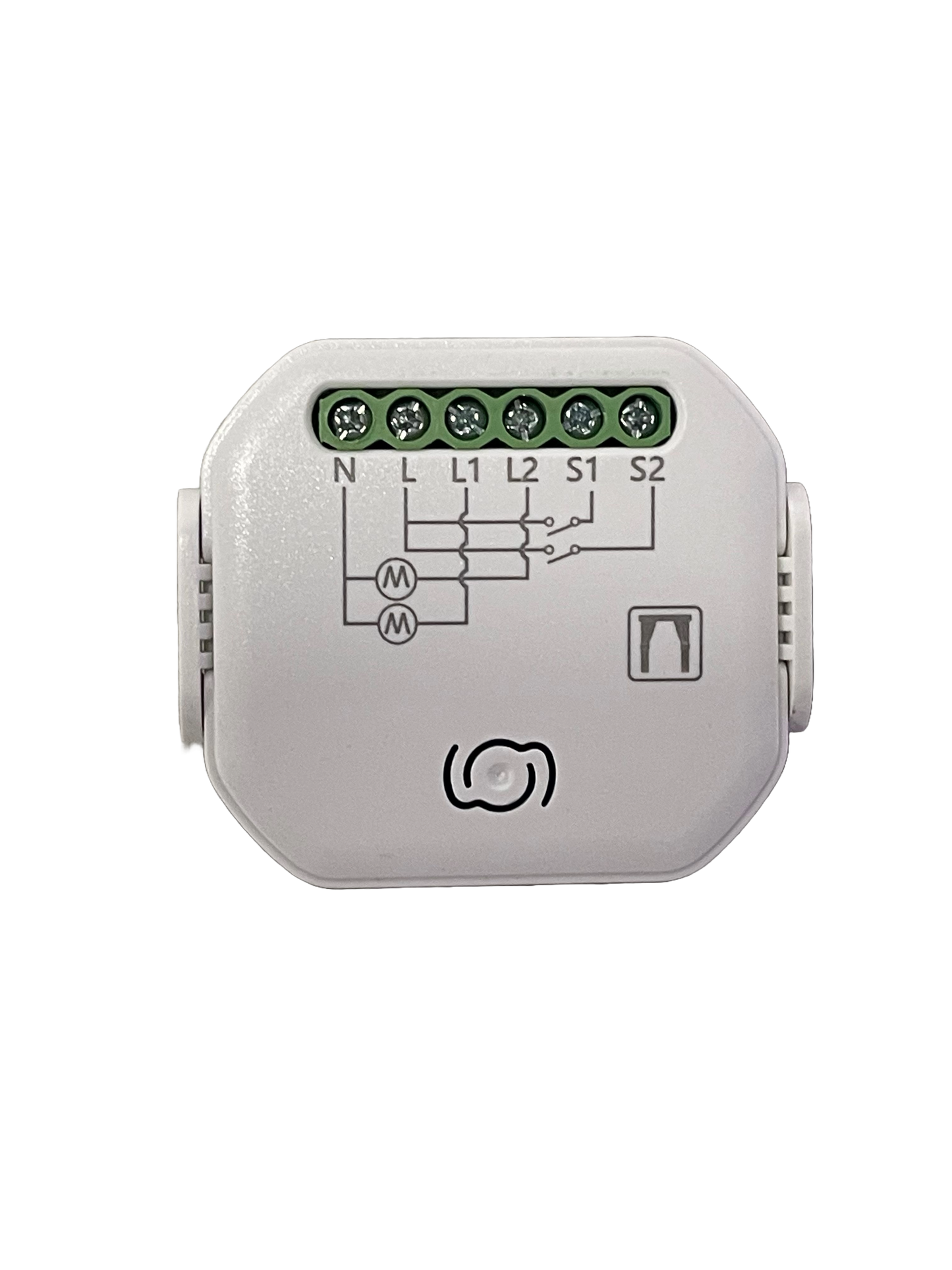

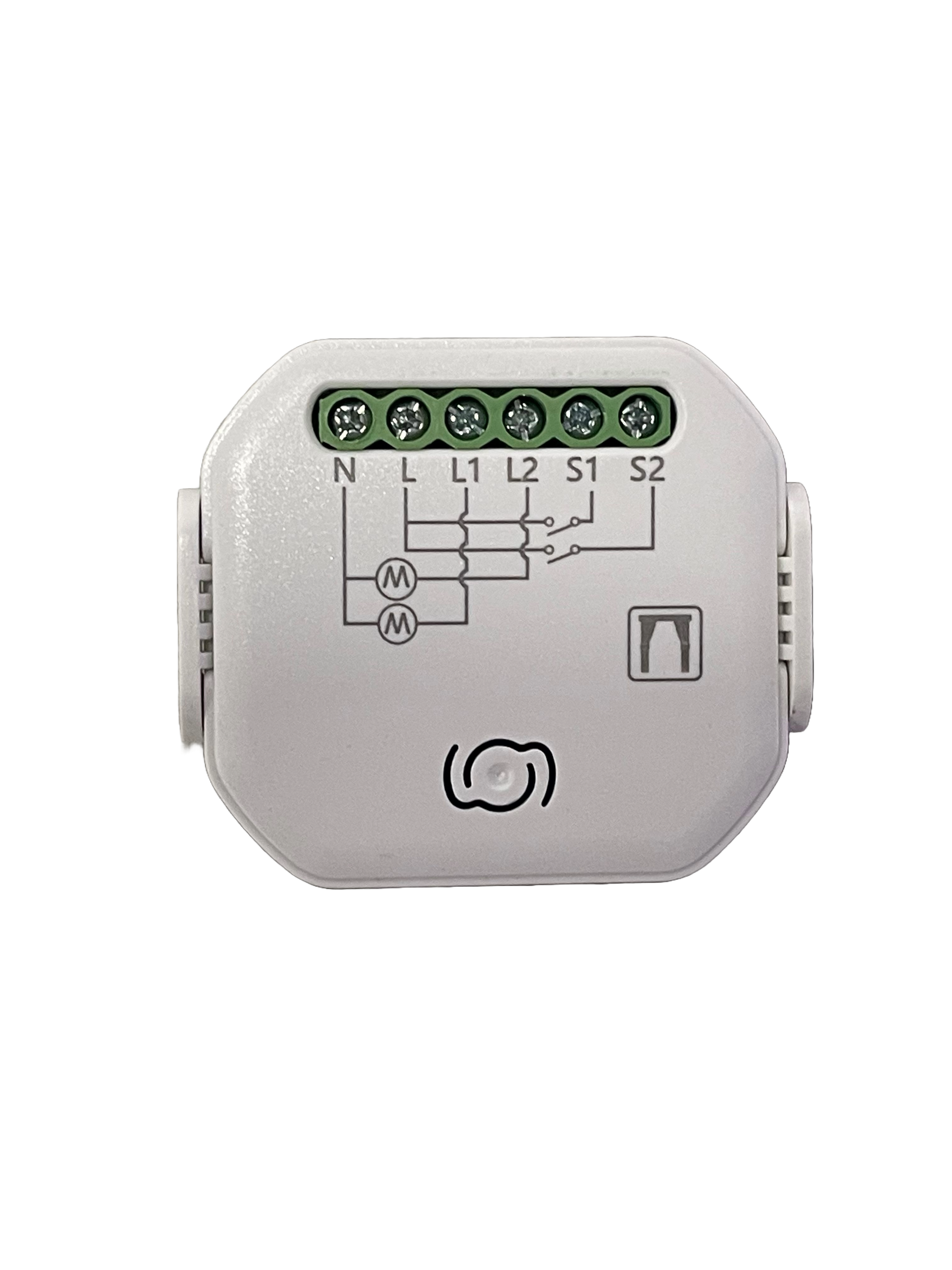

Wi-Fi Smart Roller Shutter Module – In-Wall Controller for Blinds, Curtains & Shutters (Tuya-Compatible)
Wi-Fi Smart Roller Shutter Module – In-Wall Controller for Blinds, Curtains & Shutters (Tuya-Compatible)
Couldn't load pickup availability
Product Description:
Automate your roller shutters, blinds, or curtain motors using this compact Wi-Fi Smart Roller Shutter Module. Designed to fit behind traditional wall switches or inside junction boxes, this smart controller integrates with Tuya or Smart Life apps for full remote control. You can open, close, or stop your shutters from anywhere, or schedule operations by time, scenes, or voice command. Ideal for both retrofit and new smart home installations.
Key Features:
-
Shutter/Blind Motor Control: Supports motorized blinds, roller shutters, and curtains
-
Compact In-Wall Design: Fits behind existing switches or in wall boxes (requires neutral)
-
Wi-Fi Connectivity: Works on 2.4GHz network with no hub required
-
App Control: Full remote access and scheduling via Tuya / Smart Life app
-
Manual Switch Compatibility: Can be paired with physical push buttons or switches
-
Voice Control: Compatible with Amazon Alexa, Google Assistant, and Matter
-
Scene Automation: Set open/close routines with other smart devices
Technical Specifications:
-
Power Supply: 100–240V AC, 50/60Hz
-
Max Load: 3A per output channel (up/down)
-
Motor Type Supported: AC tubular motors with limit switches
-
Connectivity: 2.4GHz Wi-Fi (IEEE 802.11 b/g/n)
-
Control Inputs: 2x dry contact inputs for wall switch
-
Material: Fire-retardant ABS housing
-
Module Size: Approx. 46 x 46 x 18 mm
-
Operating Temperature: -10°C to +50°C
-
App Platform: Tuya / Smart Life
-
Certifications: CE, RoHS
-
Weight: Approx. 80g
What's in the Box:
-
1x Wi-Fi Smart Roller Shutter Module
-
1x Instruction Manual
-
1x Wiring Label Sheet
-
1x Terminal Connector Set
