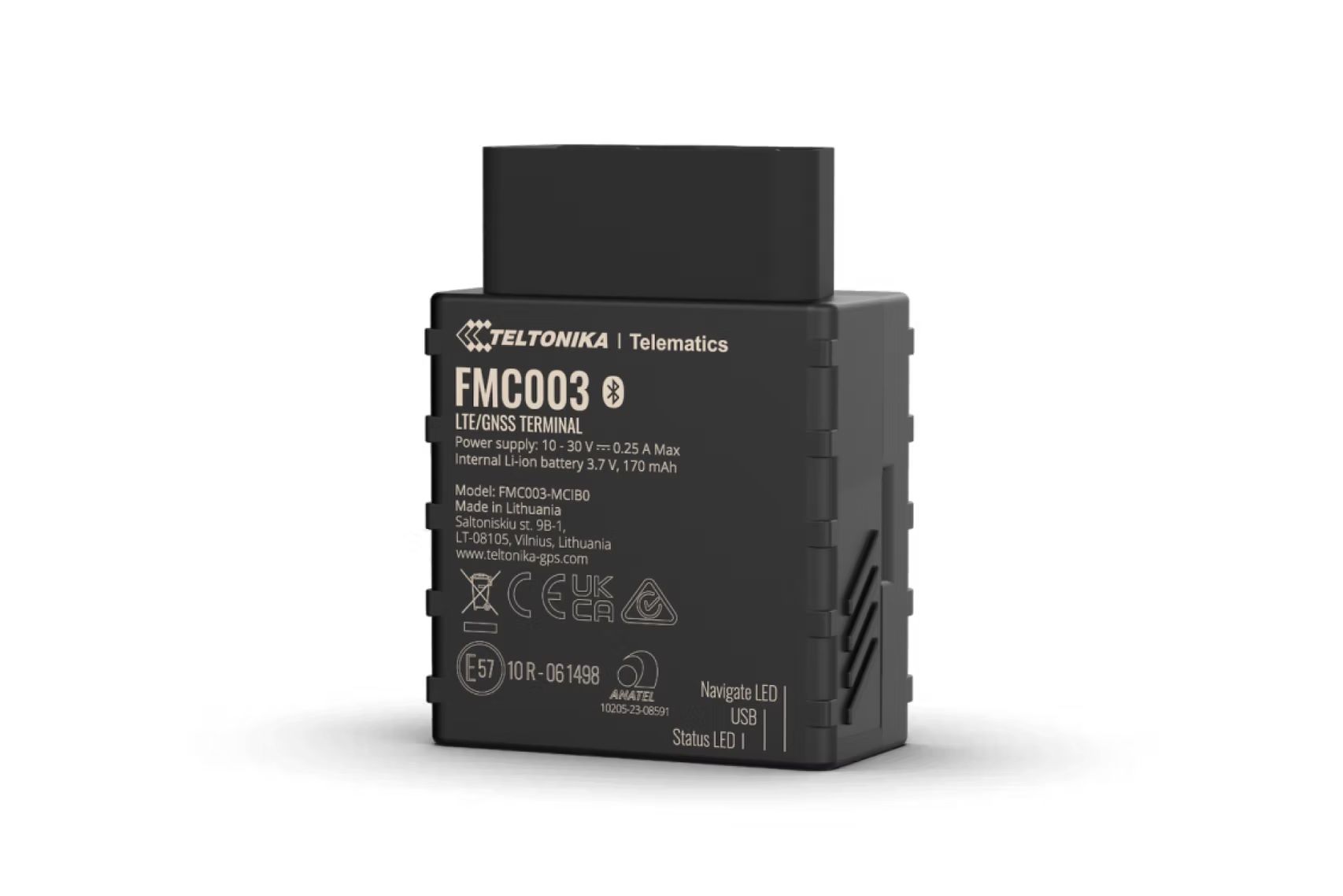

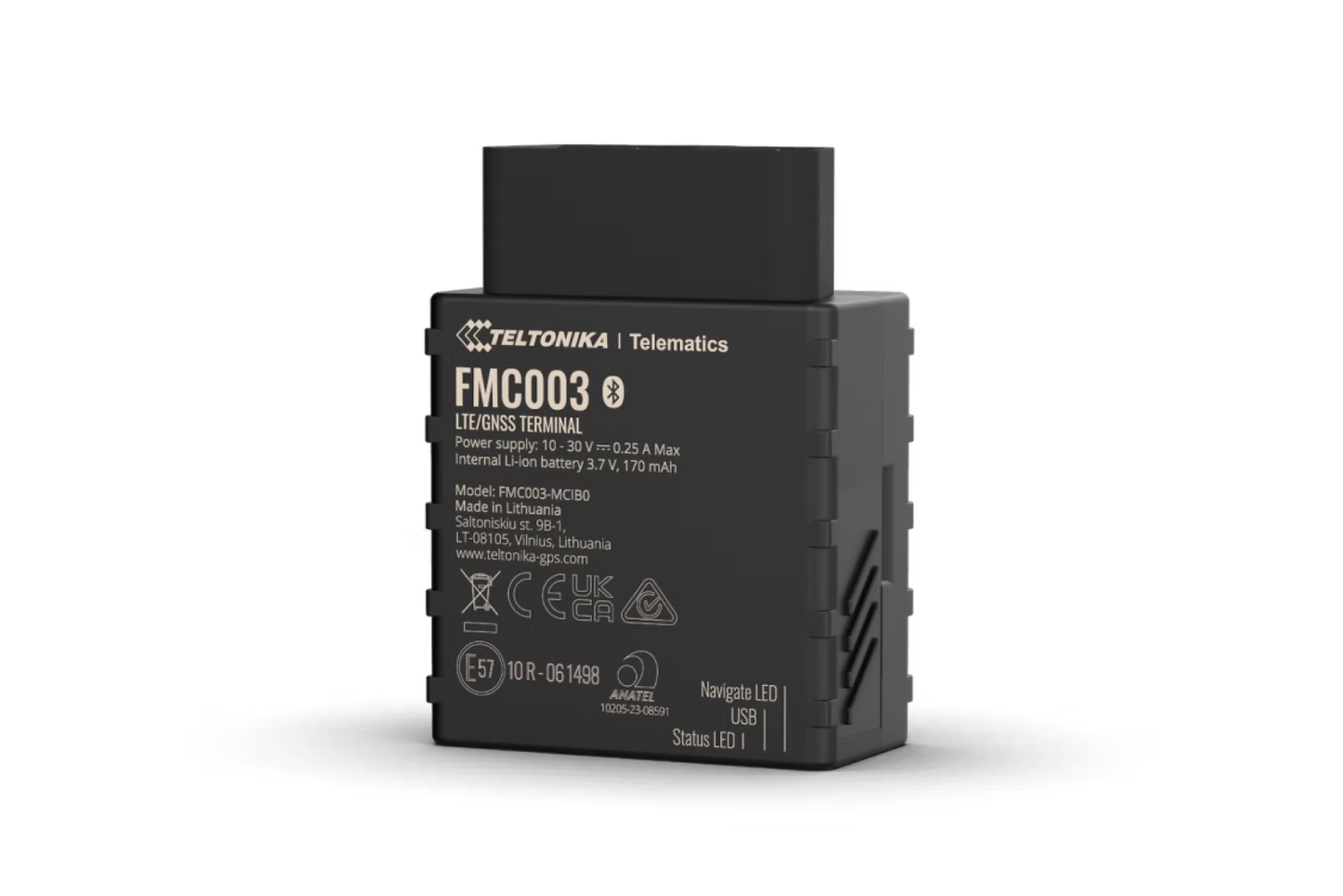

Teltonika FMC003 – 4G LTE Cat 1 OBD GPS Tracker with OEM Data Reading & Bluetooth 4.0

Teltonika FMC003 – 4G LTE Cat 1 OBD GPS Tracker with OEM Data Reading & Bluetooth 4.0

€139,00 EUR
€139,00 EUR
Sale Sold out
Taxes included.

Product Description:

The Teltonika FMC003 is a cutting-edge OBD-II GPS tracker designed for fast installation and reliable long-term fleet tracking. With 4G LTE Cat 1 connectivity and 2G fallback, it delivers high-speed, global coverage across LTE bands. The plug-and-play design leverages your vehicle’s OBD port for real fuel level, odometer, and up to 32 OEM parameters reading — ideal for advanced telematics. Fits perfectly for fleet management, insurance telematics (UBI), car rental and driver logbook use cases. Bluetooth 4.0 LE support expands capabilities to external sensors and beacons.





Key Features:

  • 4G LTE Cat 1 with 2G Fallback: Reliable worldwide connectivity

  • OEM OBD-II Parameter Reading: Real fuel level, odometer & more

  • Bluetooth 4.0 LE: Supports sensors like temperature/humidity, beacons, firmware/config updates

  • Plug & Play Installation: No wiring required — connects directly to OBD-II port

  • Fleet Intelligence Features: Overspeeding, unplug detection, towing, crash detection, geofencing & green driving alerts

  • FOTA Updates: Firmware can be updated via Bluetooth, USB, or web





Technical Specifications:

  • Model: FMC003‑MBIB0

  • GNSS Support: GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS/AGPS; 33‑channel receiver; < 3 m accuracy; hot start < 1 s

  • Cellular Bands: LTE FDD (B1, B3, B7, B8, B20, B28), LTE-TDD (B38, B40, B41), GSM/GPRS 2G fallback (B2, B3, B5, B8)

  • Data Rates: LTE FDD: up to 10 Mbps DL / 5 Mbps UL; LTE-TDD: up to 8 Mbps DL / 2 Mbps UL; GPRS max 85.6 kbps synchronous

  • Power Input: 10–30 V DC via OBD port; internal 170 mAh Li‑Ion backup battery (≈0.63 Wh)

  • Power Consumption: Ultra-deep sleep < 3 mA; deep sleep < 5 mA; normal < 33 mA; peak < 2 A

  • OBD-II Interface: Supports up to 32 OEM PIDs via HS/M-SW CAN and K‑Line protocols

  • Bluetooth: BLE 4.0 + LE; supports external sensors and Teltonika Eye accessories

  • Memory: 128 MB internal NAND flash (≈422,400 records)

  • Dimensions: 67.2 × 49.6 × 25 mm; Weight: 63 g

  • Operating Conditions: −40 °C to +85 °C; 5–95 % RH; IP41 protection class

  • Certifications: CE RED, E-Mark, RCM, SIRIM, ICASA, FCC, RoHS, REACH, GDPR compliant





What's in the Box:

  • 1× Teltonika FMC003 tracker

  • 1× Top/Bottom device cover

  • 1× OBD-II adapter cap

  • 1× Quick Start Guide and label sheet



View full details
